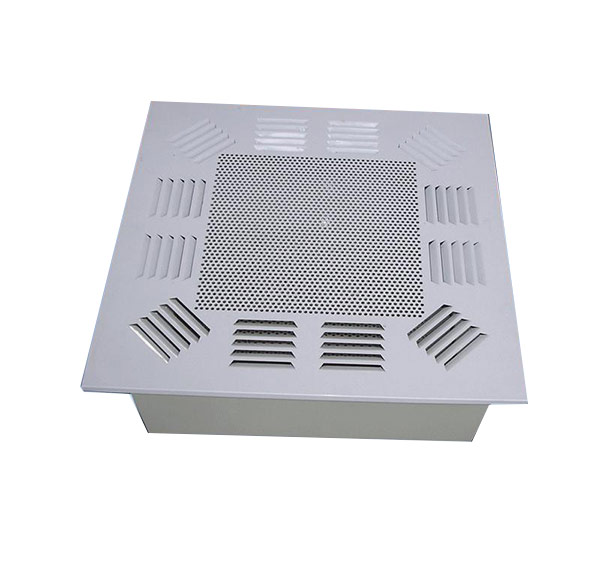

The shell of HEPA box made of good cold steel,Static electic Spray plastic onface,Other parts have static pressure box,hepa filter,flow plate,As the terminal hepa filter fixed on the top of clean in any sort of new build or rebuild cleanroom.Have advantages such as less investment and easy to fix.
application
1. Color steel plate structure and clean room of aluminum alloy keel;
2. Because the height of the clean room is limited by the height of the civil construction, a clean room with a compact design must be used;
3. Partially cleaned equipment.
Characteristics
1. The static pressure box is made of high quality steel plate, and the high efficiency filter and static pressure box are made into one piece. At the air inlet of the static pressure box, the regulating valve adjusts the air supply uniformity and static pressure effect.
2. Light weight and easy to install, it is especially suitable for installation in the clean room of color steel plate structure and aluminum alloy keel.
Main technical parameters (integrated high efficiency air supply port)
|
Specification model
|
High efficiency filter efficiency (DOP method @0.3um)
|
Size (L × W × Hmm)
|
Duct size D (mm)
|
Air volume M3/h
|
Initial resistance Pa
|
|
GF1210D/Y |
99.99% |
1220×610×150 |
φ300 |
1800 |
175 |
|
GF600D/Y |
99.99% |
610×610×150 |
φ250 |
850 |
175 |
Main technical parameters (efficient air supply port)
|
model
|
Static pressure box dimensions (L×W×Hmm)
|
High efficiency air filter Dimensions (mm)
|
Rated air volume m3/h
|
Inlet duct size (A×Bmm)
|
Duct connection (C×Dmm)
|
Assembly size (T×S×R×Gmm
|
Ring spacing mm
|
weight kg
|
|
|
Side inlet
|
Top inlet
|
||||||||
|
GF320 |
GF320D |
370×370×530 |
320×320×220 |
500 |
200×200 |
250×250 |
438×438 |
344×344 |
～20 |
|
GF484 |
GF484D |
534×534×530 |
484×484×220 |
1000 |
220×200 |
370×250 |
588×588×294×294 |
508×508 |
～26 |
|
GF610 |
GF610D |
660×660×460 |
610×610×150 |
320×250 |
370×300 |
716×716×358×358 |
634×634 |
～30 |
|
|
GF820 |
GF820D |
870×650×460 |
820×600×150 |
1200 |
320×250 |
370×300 |
926×706×436×353 |
844×624 |
～35 |
|
GF630 |
GF630D |
680×680×530 |
630×630×220 |
1500 |
320×250 |
370×300 |
736×736×368×368 |
654×654 |
～35 |
|
GF726 |
GF726D |
776×534×530 |
726×484×220 |
400×200 |
450×250 |
832×590×416×295 |
750×508 |
～35 |
|
|
GF915 |
GF915D |
965×660×460 |
915×610×150 |
500×250 |
500×300 |
1022×716×511×358 |
939×634 |
～40 |
|
|
GF968 |
GF968D |
1018×534×530 |
968×484×220 |
2000 |
500×200 |
550×250 |
1074×590×537×295 |
992×508 |
～50 |
|
GF1220 |
GF1220D |
1270×660×460 |
1220×610×150 |
500×200 |
550×250 |
1326×716×332×358 |
1244×634 |
～55 |
|
|
GF945 |
GF945D |
955×680×530 |
945×630×220 |
2200 |
500×250 |
550×300 |
1052×736×526×368 |
969×654 |
～50 |
|
GF1260 |
GF1260D |
1310×680×530 |
1260×630×220 |
3000 |
600×250 |
650×300 |
1366×736×455×368 |
1284×654 |
～60 |
